塑料 · PLASTIC

聚碳酸酯（PC）

Polycarbonate

聚碳酸酯（PC）是一种性能非常全面的工程塑料，具有高透明度、高抗冲击性、热稳定性好、阻燃可调等特点，是对'玻璃、丙烯酸、金属'等材料的常用替代选项。广泛应用于照明外壳、安全防护、展览结构、艺术装置、电子产品及建筑采光系统中。

Polycarbonate (PC) is a comprehensive engineering plastic with high transparency, high impact resistance, good thermal stability, and adjustable flame retardancy. It is a common alternative to glass, acrylic, and metal materials.

§01

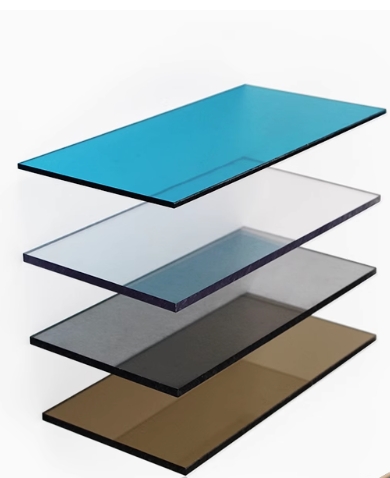

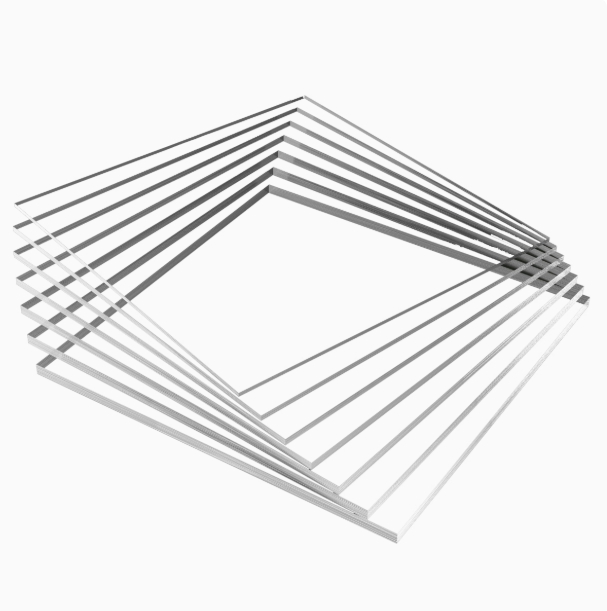

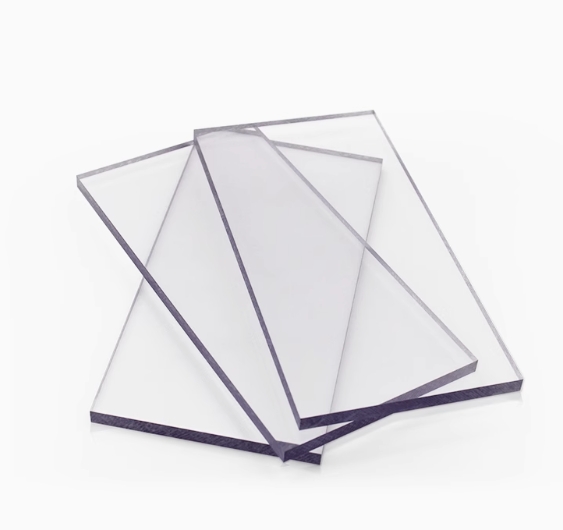

Plates

材料图版

§02
Characteristics

材料特性

极高抗冲击性Extremely High Impact Resistance
是同类塑料中抗冲击最强的之一（约为亚克力的200倍）One of the strongest impact resistance among similar plastics (about 200 times stronger than acrylic)
高透明度High Transparency
透光率可达88%以上，适合灯罩、展示窗等需视觉穿透感的应用Light transmittance can reach over 88%, suitable for lamp covers, display windows and other applications requiring visual penetration
耐热性好Good Heat Resistance
可长期在120℃下工作，短时耐热至135℃以上Can work continuously at 120°C, short-term heat resistance up to 135°C
尺寸稳定性高High Dimensional Stability
热变形小，适用于高精度结构件Low thermal deformation, suitable for high-precision structural components
阻燃性可调Adjustable Flame Retardancy
可添加阻燃剂达到UL94 V-0标准，符合公共空间/电子产品安全需求Can add flame retardants to achieve UL94 V-0 standard, meeting safety requirements for public spaces/electronic products
易加工成型Easy Processing
可注塑、热弯、冷弯、切割、打孔、雕刻，支持复杂形态设计Can be injection molded, thermoformed, cold bent, cut, drilled, engraved, supporting complex shape design
§03
Specifications

技术参数

属性 / Property数值 / Value单位 / Unit
密度Density1.21.2g/cm³
抗冲击强度Impact Strength>850>850J/m
拉伸强度Tensile Strength55-7555-75MPa
热变形温度Heat Deflection Temperature130-145130-145°C
工作温度范围Working Temperature Range-40°C ~ +120°C-40°C ~ +120°C—
透光率Light Transmittance86-8986-89%
§04
Manufacturing Process

制造工艺

注塑成型：适用于结构复杂部件，如电子壳体、机械连接件 挤出成型：生产PC实心板、空心阳光板、波浪板等建筑/展览用板材 热成型：加热后压模成型，用于弧形灯罩、护罩、艺术装置等 冷弯加工：某些厚度板材可直接冷弯成型，适用于展览结构与快速安装构件 CNC切割：高精度加工，用于定制孔位、拼接、边缘打磨 激光雕刻：适用于灯光导引、图案雕刻、互动装置表层加工等 翻译英文

Injection Molding: Suitable for complex structural components such as electronic housings and mechanical connectors Extrusion Molding: Production of PC solid sheets, hollow polycarbonate sheets, corrugated sheets and other building/exhibition panels Thermoforming: Heating and press molding for curved lamp covers, protective shields, art installations, etc. Cold Bending Processing: Certain thickness sheets can be directly cold-bent, suitable for exhibition structures and quick-installation components CNC Cutting: High-precision processing for custom hole positioning, splicing, and edge polishing Laser Engraving: Suitable for light guiding, pattern engraving, interactive installation surface processing, etc.

§05
Applications

应用场景

  • App. 01

    照明装置

    Lighting Fixtures

    用于LED灯罩、投影装置透镜、灯箱面板，兼具透光性与抗热性

    Used for LED lamp covers, projection device lenses, light box panels, combining light transmission and heat resistance

  • App. 02

    展览与装置结构

    Exhibition & Installation Structures

    弧形外壳、结构件、保护罩、互动表层，适合雕刻图案与打孔安装

    Curved shells, structural components, protective covers, interactive surfaces, suitable for pattern engraving and hole mounting

  • App. 03

    建筑采光系统

    Architectural Lighting Systems

    PC阳光板、波浪板，广泛应用于中庭屋顶、雨棚、室内隔断

    PC polycarbonate sheets, corrugated sheets, widely used in atrium roofs, canopies, interior partitions

  • App. 04

    安全防护结构

    Safety Protection Structures

    护目罩、防弹盾、安全罩，使用抗冲击PC板替代玻璃

    Goggles, bulletproof shields, safety covers, using impact-resistant PC sheets to replace glass

  • App. 05

    电子产品壳体

    Electronic Product Housing

    高强度轻量外壳，适用于精密结构、移动设备、机械设备外壳

    High-strength lightweight shells, suitable for precision structures, mobile devices, mechanical equipment housings
